| TECHNICAL DATASHEET | |
|---|---|
|
Power consumption |
70W – 150W
|
|
Power supply |
85/264V auto switch
|
|
Interface |
USB & Lan (optional) |
|
Inkjet technology |
HP 45 or compatible |
|
Inkjet heads |
HP 2 / 4 |
|
Paper grammage |
18 – 120 gr/m2 |
|
Feeding paper roll max weight |
40 Kg |
|
Feeding paper roll max diameter |
35 cm (20 cm with Dual Roll option) |
|
Noise level |
< 40 dB |
|
File formats accepted |
HPGL / HPGL2 / ISO |
|
Models |
TDOT 180 / 220 |
|
Weight |
TDOT 180: 152kg / TDOT 220: 168kg
|
| SOFTWARE RECOMMENDED REQUIREMENTS | |
|---|---|
|
Operating system |
Windows 7, 8, 8.1, 10 (32/64) |
|
RAM |
8GB |
|
Available hard disk space |
100 MB |
|
Processor speed |
2.0 GHz |
DOT vs TDOT
| DOT | TDOT | |
|---|---|---|
|
Throughput |
Up to 117m2/h |
Up to 140m2/h |
|
Line thickness |
1 – 5 |
1 – 8 (True line) |
|
Connectivity |
USB Simple LAN (UDP) |
USB Complete LAN (TCP with automatic DHCP) Ethernet discovery |
|
Maximum resolution |
300 x 600dpi |
up to 600 x 600 dpi |
|
Fit print option |
NA |
Available |
|
Optink option |
NA |
Available |
|
Cut&Go option |
NA |
Available |
|
Notch+ option |
NA |
Available |
|
Finance program |
NA |
Included |
|
Power pads |
NA |
Included
|
|

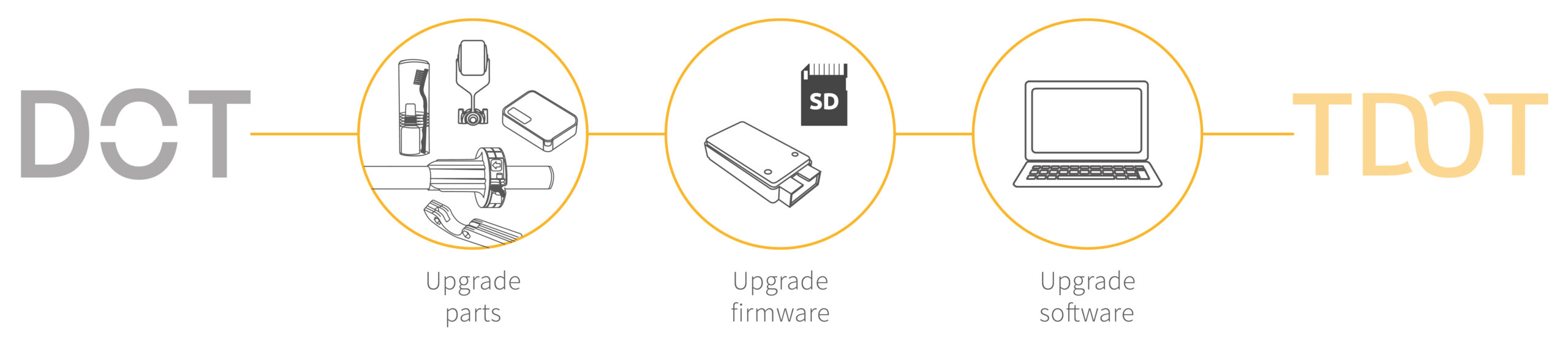

Firmware upgrade |
Speed Pack Available |
SD card
|
|
Service tools |
Current |
Integrated maintenance tools
|
|
Demo plots in SD card |
NA |
Included |
|
Internal logger |
NA |
Included |
|
Easy care – Preventive maintenance |
NA |
Optional |
|
Print header summary |
NA |
Included |
|
Grouping cut management |
NA |
Included |
|
W10 USB certified driver |
NA |
Included |
